Model VB-B01

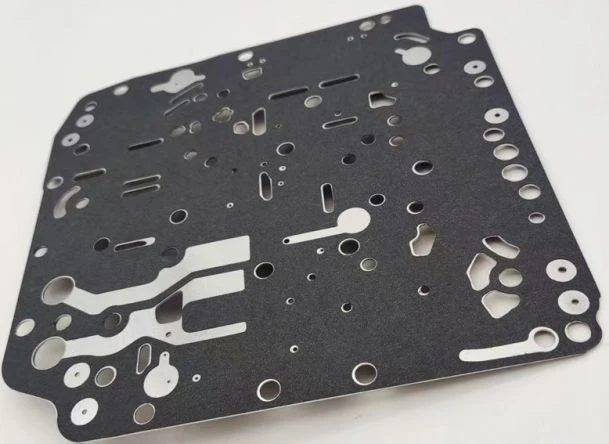

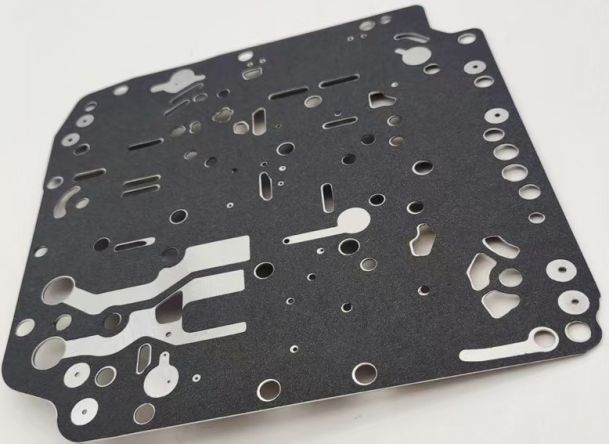

VB-B01 is an asbestos-free sealing material specifically designed for gearbox valve body gaskets. It utilises cellulose fibres as a reinforcing material, carboxylated nitrile rubber as a binder, and a thermosetting resin as a reinforcing agent. The material exhibits excellent uniformity and, following calendering with specialised equipment, possesses exceptional surface smoothness and gloss. It possesses extremely high tensile strength and minimal deformation; even under high-speed fluid scouring, the material will not erode or flake away, nor will it block oil holes or oil passages. The maximum intermittent operating temperature is 180°C.
Product appearance: black
Specifications: 1000 per roll
Standard thickness: 0.2–0.5 mm; other specifications can be manufactured upon request.
|
Property |
Value |
Method |
|
Density,g/cm³ |
≥1.0 |
ASTM F1315 |
|
Tensile Strength,AMD,MPa |
≥27 |
ASTM F152 |
|
Compressibility,% |
10-20 |
ASTM F36 |
|
Recovery,% |
≥60 |
ASTM F36 |
|
Fluid Resistance,IRM903 Oil |
ASTM F146 |
|
|
Change in Weight,% |
≤30 |
|
|
Change in Thickness, % |
≤10 |
|
|
Fluid Resistance Fuel B |
ASTM F146 |
|
|
Change in Weight,% |
≤30 |
|
|
Change in Thickness, % |
≤10 |
|
