Model OS-R01
The OS-R01 is a high-density, asbestos-free sealing material. This product utilises synthetic fibres as the reinforcing material and carboxylated nitrile rubber as the binder. Following vulcanisation at a specific temperature, it exhibits excellent oil and gas sealing performance, as well as a low creep-relaxation rate, enabling it to effectively maintain bolt torque during use. It is widely used for sealing media such as engine oil and coolant. Recommended maximum operating temperature: 180°C.

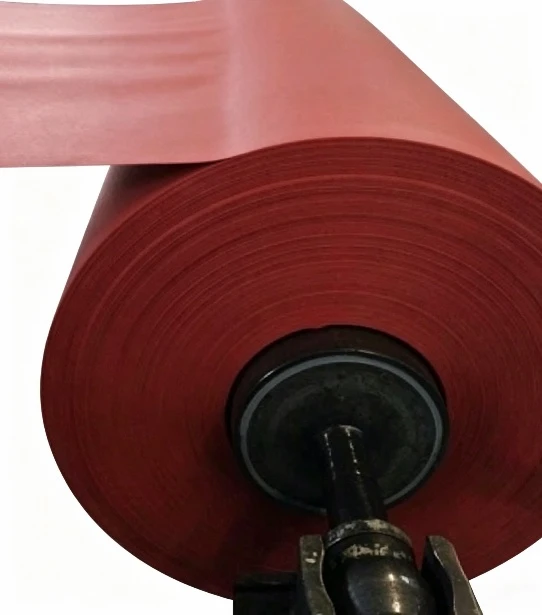

Product Appearance: red.
Dimensions: 1200*roll.
Standard thickness: 0.4–1.2 mm; other specifications can be manufactured upon request.
|
Property |
Value |
Method |
|
Density,g/cm³ |
≥1.5 |
ASTM F1315 |
|
Tensile Strength,AMD,MPa |
≥10 |
ASTM F152 |
|
Compressibility,% |
10-20 |
ASTM F36 |
|
Recovery,% |
≥50 |
ASTM F36 |
|
Creep Relaxation,% |
≤30 |
ASTM F38 |
|
Fluid Resistance,IRM903 Oil |
ASTM F146 |
|
|
Change in Weight,% |
≤30 |
|
|
Change in Thickness, % |
≤20 |
|
|
Fluid Resistance Fuel B |
ASTM F146 |
|
|
Change in Weight,% |
≤25 |
|
|
Change in Thickness, % |
≤15 |
|
