Model HP-B01

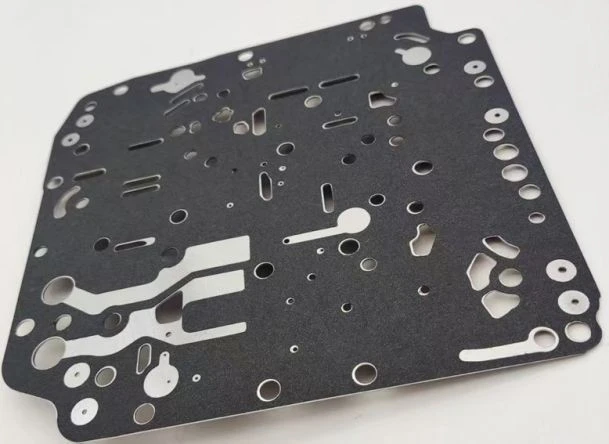

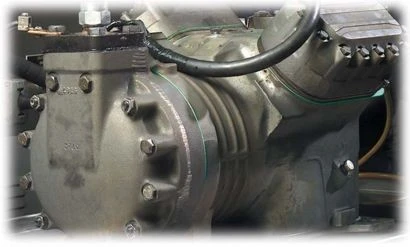

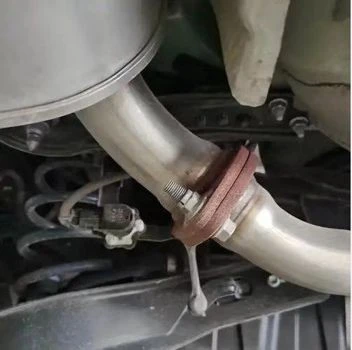

HP-B01 is a high-performance, asbestos-free sealing material produced using a non-sulphur vulcanisation system. It is designed for sealing oil, gas and coolant media in compressors, diesel engines and other heavy machinery. HP-B01 is a composite material prepared using aramid fibres and neoprene rubber as a binder. The product offers excellent tensile strength, compressive strength, high resilience and media sealing performance, with a maximum intermittent operating temperature of 250°C.
Appearance: black.
Dimensions: 1200*roll.
Standard thickness: 0.4–1.2 mm; other specifications can be manufactured upon request.
|
Property |
Value |
Method |
|
Density,g/cm³ |
≥1.55 |
ASTM F1315 |
|
Tensile Strength,AMD,MPa |
≥12 |
ASTM F152 |
|
Compressibility,% |
5-15 |
ASTM F36 |
|
Recovery,% |
≥60 |
ASTM F36 |
|
Creep Relaxation,% |
≤25 |
ASTM F38 |
|
Fluid Resistance,IRM903 Oil |
ASTM F146 |
|
|
Change in Weight,% |
≤25 |
|
|
Change in Thickness, % |
≤15 |
|
|
Fluid Resistance Fuel B |
ASTM F146 |
|
|
Change in Weight,% |
≤20 |
|
|
Change in Thickness, % |
≤10 |
|
