Model HP-G01

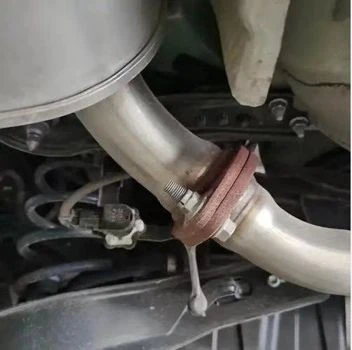

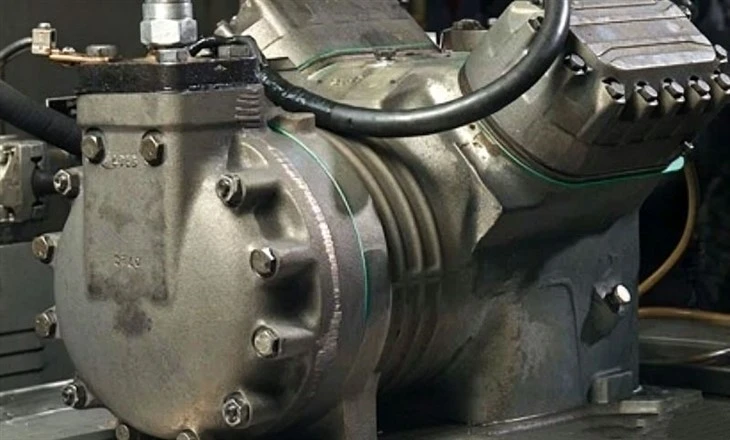

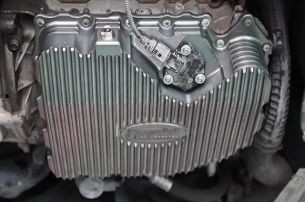

HP-G01 is a fully vulcanised, high-performance, asbestos-free sealing material designed for sealing oil, gas and coolant media in applications including gearboxes, compressors, diesel engines and other heavy machinery. HP-G01 is a high-performance composite material manufactured using aramid fibres as the reinforcing material, modified nitrile rubber as the binder, and nano-modified fillers as the filler. This product offers excellent tensile strength, compressive strength, corrosion resistance and resistance to high-speed fluid erosion. It can withstand high flange pressures and exhibits excellent torque retention, with a maximum intermittent operating temperature of 305°C.
Appearance: Green

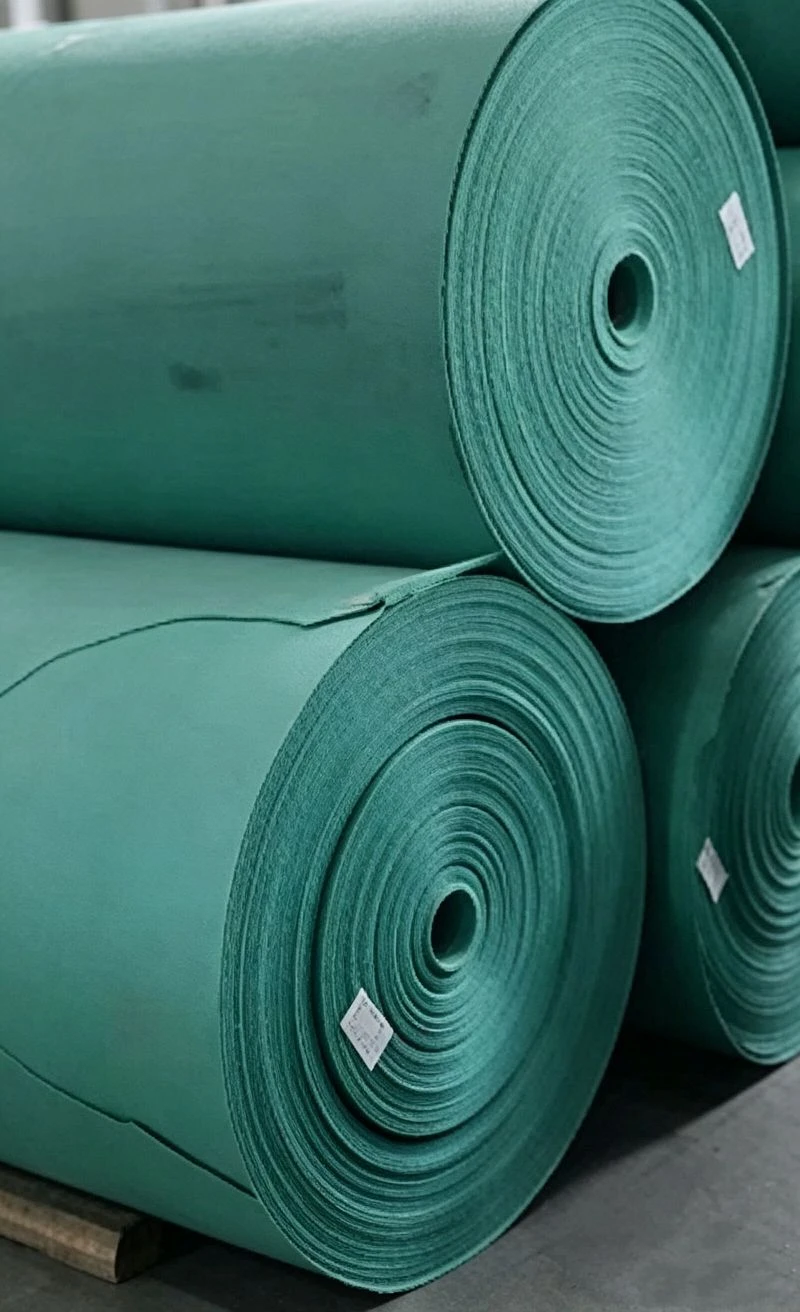

Dimensions: 1200*roll
Standard thickness: 0.4–1.2 mm; other specifications can be manufactured upon request.
|
Property |
Value |
Method |
|
|
Density,g/cm³ |
≥1.55 |
ASTM F1315 |
|
|
Tensile Strength,AMD,MPa |
≥15 |
ASTM F152 |
|
|
Compressibility,% |
5-15 |
ASTM F36 |
|
|
Recovery,% |
≥60 |
ASTM F36 |
|
|
Fluid Resistance,IRM903 Oil |
ASTM F146 |
||
|
Change in Weight,% |
≤20 |
||
|
Change in Thickness, % |
≤10 |
||
|
Fluid Resistance Fuel B |
ASTM F146 |
||
|
Change in Weight,% |
≤20 |
||
|
Change in Thickness, % |
≤10 |
||
